Evaporative Cooler Motor ZS158G

Short Description:

ZS158G air cooler motor it has been exported to the Middle East, Australia, New Zealand, Thailand, Vietnam and other countries.Product specifications are complete, motor performance and size can be customized according to customer needs. Zhengde factory has passed ISO9001; 2000 Quality management system certification, national mandatory product certification (3C certification), European Community safety certification (CE certification), export product quality license certification.

Details:

100% copper/aluminium;

The body colour, frame colour and meterial,  the capacitance cap colour all can custom;

Each production line is tested according to national standard;


Product Detail

Product Tags

Specifications

Model “ZHENGDE”iron Air cooler Motor, ZS158G two speed
Voltage (V) 220
Frequency (HZ) 50
Input Power (HP) 1/4, 1/3, 1/2
Ingress Protection 10
Insulation Class B
Capacitior (UF/V) 10/450
Stator Size (mm) 27/30/33/36/38/45/55
Max AmbientAir Temperature (℃) 45
Rated Power Factor 0.87

Pictures

product-description4

product description01
product description02
product description03
product description04
product description05
product description06
Revolutions Per Minute(r/min) Current (A) Input Power (HP)
1450 2 1/4
950 1 1/12

Progress & Application

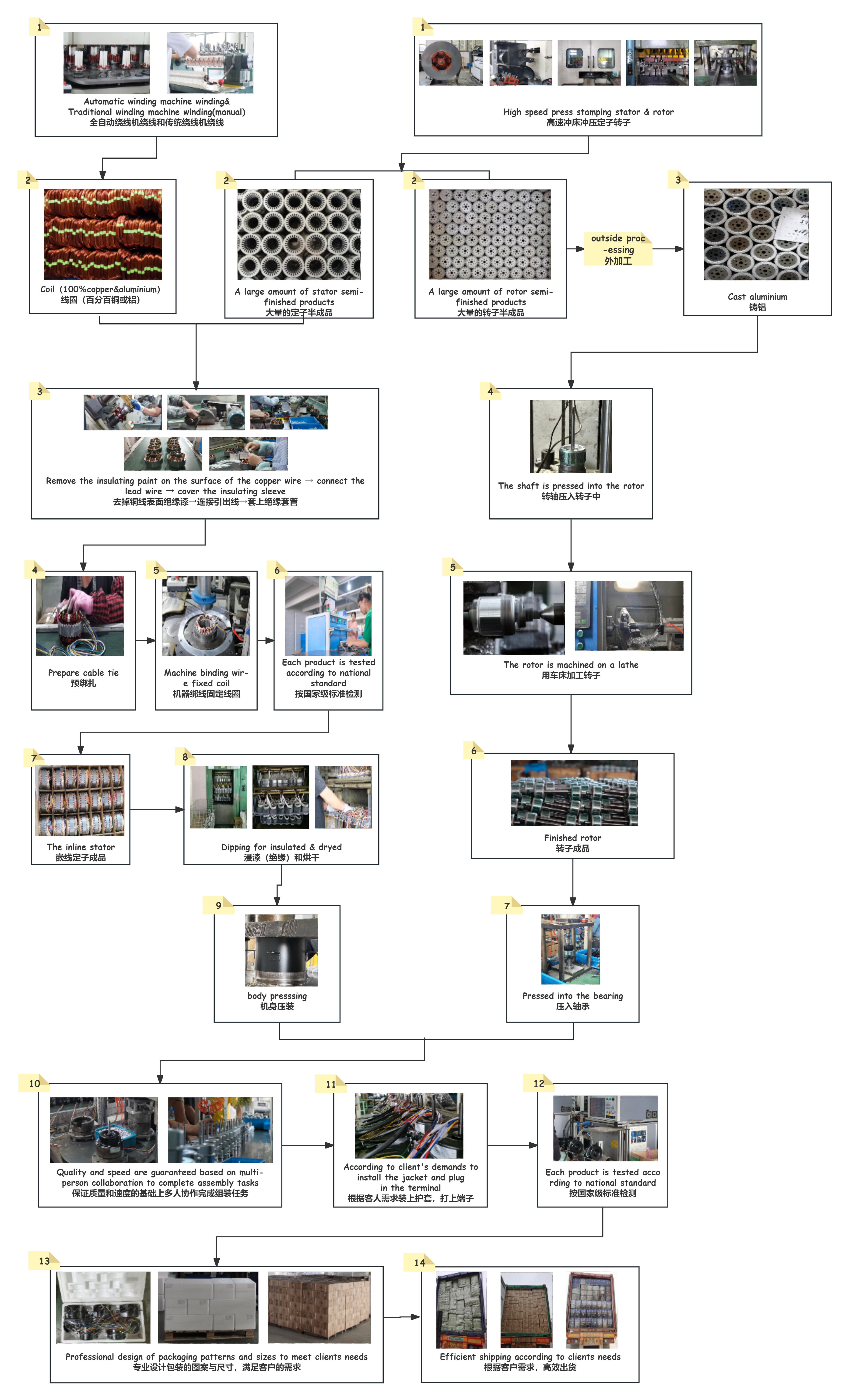

Production processes
  1. winding→inserting winding→binding wire→inspection
  2. rapid automatic press→Rotor lathe→Assembly→inspection→Packing
Usage Outdoor air cooler, Mobile air cooler, factory air cooler
