Mobile AC Air Cooler MotorYYF140-30-4-150-1

Short Description:

YYF140 air cooler motor is a hot product independently developed by Zhengde Motor factory. At present, it has been exported to the Middle East, Australia, New Zealand, Thailand, Vietnam and other countries.Product specifications are complete, motor performance and size can be customized according to customer needs. Zhengde factory has passed ISO9001; 2000 Quality management system certification, national mandatory product certification (3C certification), European Community safety certification (CE certification), export product quality license certification.

Details:

100% copper/aluminium;

The rotors are treated with dip paint;

Each production line is tested according to national standard;








Product Detail

Product Tags

Specifications

Model UNIVERAL-AC MOTOR YYF140/30-4-150-1
three speed /two rotation
Voltage (V) 220
Frequency (HZ) 50
Input Power (HP)   1/5
Current (A) 1.8
Insulation Class B
Capacitior (UF/V) 5/450
rotation counter clockwise & clockwise

Pictures

product description01
product description02
product description03
product description04
product description05
product description06

Progress & Application

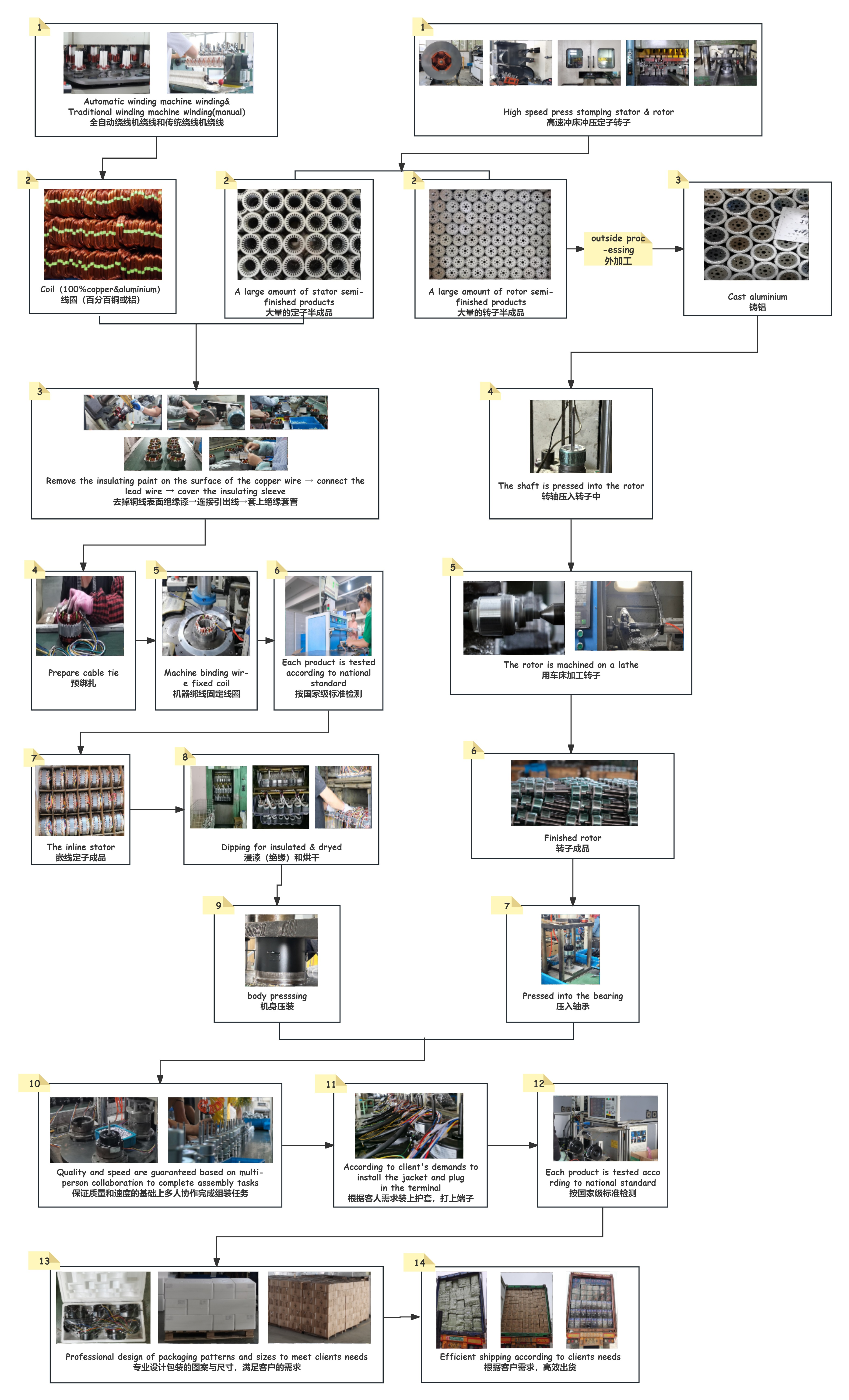

Production processes
  1. winding→inserting winding→binding wire→inspection
  2. rapid automatic press→Rotor lathe→Assembly→inspection→Packing
Usage Outdoor air cooler, Mobile air cooler, factory air cooler
